Center Console Storage Compartment

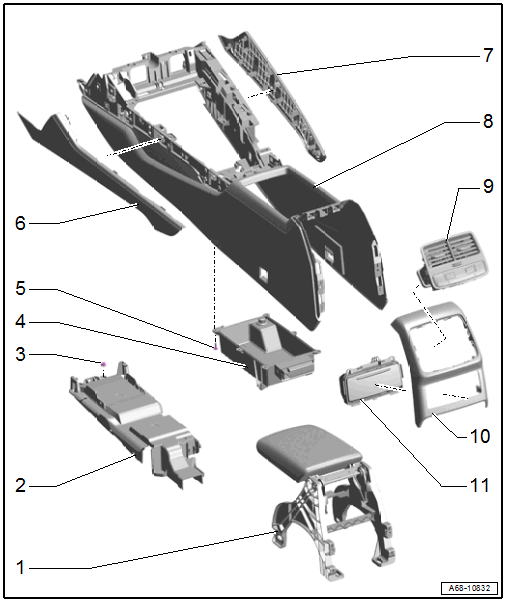

Fig 1: Exploded View Of Center Console Storage Compartment

Courtesy of AUDI OF AMERICA, LLC

Front Center Armrest
- Removing and Installing. Refer to FRONT CENTER ARMREST, REMOVING AND INSTALLING .
Control Module Cover
- On the center tunnel
- Removing and Installing. Refer to Airbag Control Module -J234-, REMOVING AND INSTALLING .
Nut
- 3 Nm
- Quantity: 2
Multimedia Device Storage Compartment
- Removing and Installing. Refer to MULTIMEDIA DEVICES STORAGE COMPARTMENT, REMOVING AND INSTALLING .
Bolt
- 1.4 Nm
- Quantity: 6
Driver Side Center Console Trim Panel
- Replace damaged or deformed clips
- Removing and Installing. Refer to CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly
Front Passenger Side Center Console Trim Panel
- Replace damaged or deformed clips
- Removing and Installing. Refer to CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly
Center Console
- Removing and Installing. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
Rear Vent/Storage Compartment
- Replace damaged or deformed clips
- Removing and Installing. Refer to REAR CENTER CONSOLE VENT, REMOVING AND INSTALLING .
- Insert and press in all the way into the installation opening
Rear Trim
- Replace damaged or deformed clips
- Removing and Installing. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .
- For the center console
- Press on until it engages audibly
Rear Ashtray/Storage Compartment
- Removing and Installing. Refer to REAR ASHTRAY, REMOVING AND INSTALLING .
- Press on until it engages audibly
