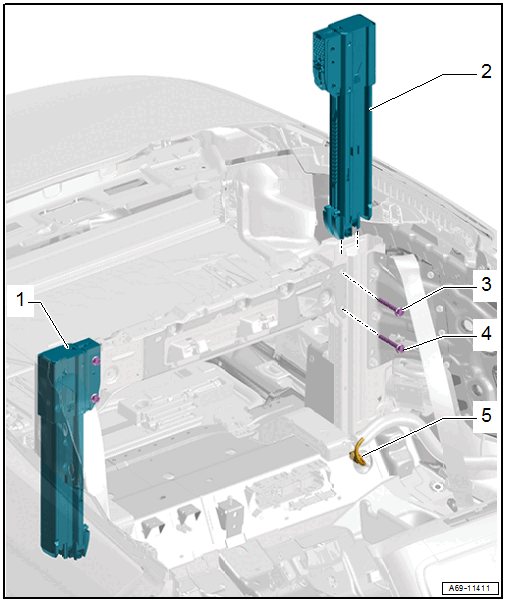

Overview - Rollover Protection
WARNING:
Risk of malfunction.
- Loosen only those bolts shown in the illustration.
- Right Rollover Protection
- With Front Passenger Side Rollover Protection Igniter -N647-
- Removing and Installing. Refer to ROLLOVER PROTECTION, REMOVING AND INSTALLING .
- Left Rollover Protection
- With Driver Side Rollover Protection Igniter -N646-
- Removing and Installing. Refer to ROLLOVER PROTECTION, REMOVING AND INSTALLING .
- Bolt
- 55 Nm
- Replace after removing.
- Tightening sequence. Refer to Fig 1.
- Bolt
- 55 Nm
- Replace after removing.
- Tightening sequence. Refer to Fig 1.
- Connector
Tightening Sequence
-- Tighten the bolts in the tightening sequence -1 and 2-.
