Overview - Airbag Control Module

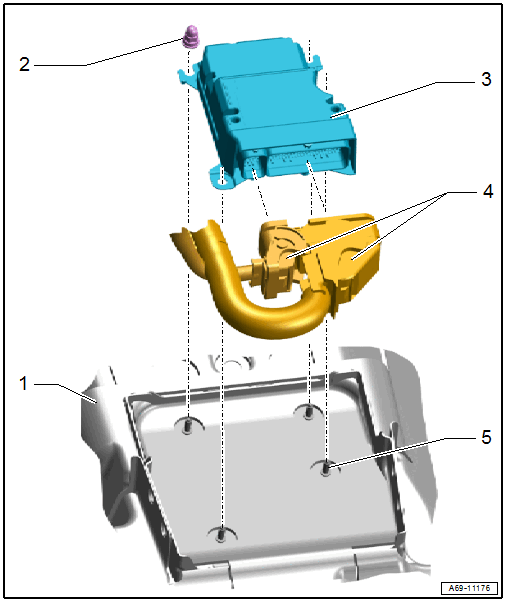

Fig 1: Exploded View Of Airbag Control Module

Courtesy of AUDI OF AMERICA, LLC

Center Tunnel
Nut
- 9 Nm
- The thread must be paint and contaminant free, nut and ground pins serve as ground connection for the control module.
- Quantity: 4
Airbag Control Module -J234-
- Removing and Installing. Refer to Airbag Control Module -J234-, REMOVING AND INSTALLING .
- The control module is grounded via the housing with the body.
Connectors
Threaded Pins
- The thread must be paint and contaminant free, nut and ground pins serve as ground connection for the control module.
- Quantity: 4
