Overview - Charge Air System, Engine-Side, AUDI RSQ8 / Sq8 / Sq7

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2023 Audi SQ8, 2023 Audi RS Q8, 2022 Audi SQ8, 2022 Audi RS Q8, and 2021 Audi SQ8. However, it is still accessible from the selected car via links, so may be relevant.

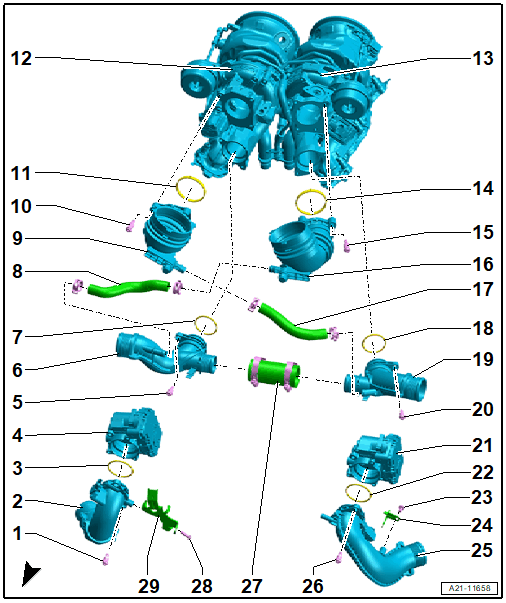

Fig 1: Exploded View Of Charge Air System, Engine-Side, Audi RSQ8 / SQ8 / SQ7

Courtesy of AUDI

Bolt
- Quantity: 3
- 7 Nm
Right Lower Air Duct Pipe on Throttle Valve Control Module:
- Removing and installing. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING .
O-Ring
- Replace after removing
Throttle Valve Control Module -GX3- Cylinder Bank 1 (right)
- Overview. Refer to OVERVIEW - INTAKE MANIFOLD .
- Removing and Installing. Refer to THROTTLE VALVE CONTROL MODULE, REMOVING AND INSTALLING .
Bolt
- Quantity: 2
- 9 Nm
Right lower air duct pipe on the turbocharger
- Removing and installing. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING .
O-Ring
- Replace after removing
Air Duct Hose
Right Upper Air Duct Pipe
- Removing and installing. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING .
Bolt
- Quantity: 3
- 9 Nm
Seal
- Replace after removing
Turbocharger
- Cylinder Bank 1 (Right)
- Overview. Refer to OVERVIEW - TURBOCHARGER .
Turbocharger
- Cylinder Bank 2 (Left):
- Overview. Refer to OVERVIEW - TURBOCHARGER .
Seal
- Replace after removing
Bolt
- Quantity: 3
- 9 Nm
Left Upper Air Duct Pipe
- There are different versions. Refer to the appropriate Electronic Parts Information.
- Removing and installing. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING .
- Disconnect and connect the crankcase ventilation hose. Refer to Fig 2.
Air Duct Hose
O-Ring
- Replace after removing
Right lower air duct pipe on the turbocharger
- Removing and installing. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING .
Bolt
- Quantity: 2
- 9 Nm
Throttle Valve Control Module 2 -GX4- Cylinder Bank 2 (left)
- Overview. Refer to OVERVIEW - INTAKE MANIFOLD .
- Removing and Installing. Refer to THROTTLE VALVE CONTROL MODULE, REMOVING AND INSTALLING .
O-Ring
- Replace after removing
Bolt
- thread cutting
- Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the specification.
- 3.5 Nm
Bracket
- For the air duct pipe
Left Lower Air Duct Pipe on Throttle Valve Control Module
- Removing and installing. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING .
Bolt
- Quantity: 3
- 7 Nm
Air Duct Hose
Bolt
- Quantity: 2
- 6 Nm
Bracket
- For 48 V: Wire to the starter generator

Crankcase Ventilation Hose on the Upper Air Duct Pipe, Rest of World Market Versions Excluding Engine Codes DWNB/DWRB

Fig 2: Crankcase Ventilation Hose on the Upper Air Duct Pipe

Courtesy of AUDI

The crankcase ventilation hose -2- cannot be removed from the air duct pipe -1- without damage (example image).

Replace the crankcase ventilation hose after removal.

-- Pry out the crankcase ventilation hose carefully using a screwdriver at the same time do not damage the air duct pipe.

-- Attach the new crankcase ventilation hose until it audibly locks on the air duct pipe.

Crankcase Ventilation Hose on the Upper Air Duct Pipe, North American Versions Excluding Engine Codes DWNB/DWRB

Fig 3: Crankcase Ventilation Hose on the Upper Air Duct Pipe

Courtesy of AUDI

CAUTION:

Risk of a violating emissions legislation on USA vehicles by the intake of leaked air.

- Do not open the hose connection on the crankcase ventilation.

-- Do not disconnect the hose -2- for the crankcase ventilation (example image).

The crankcase ventilation hose is not available separately.
The crankcase ventilation hose is available in the air duct pipe delivery package -1-.
