INSTRUMENT CLUSTER WITH Instrument Cluster Control Module -J285-, REMOVING AND INSTALLING, 9S5, 9S7: Removing
-- Move the steering wheel as far to the rear and down as possible. Use the full steering column adjustment range for this.
-- Switch off the ignition and place the ignition key outside of the vehicle.
-- Remove the left and right instrument panel vent. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .

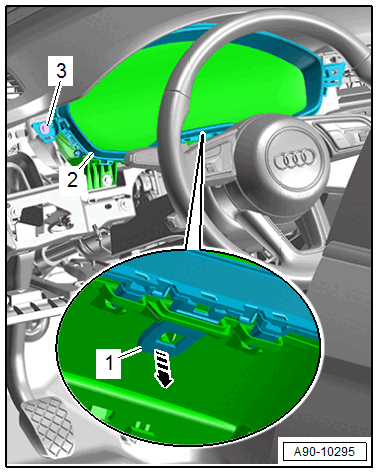

-- Remove the bolt -3-.
-- Remove both instrument clusters -2- to do so release the catch -1- in direction of -arrow-.

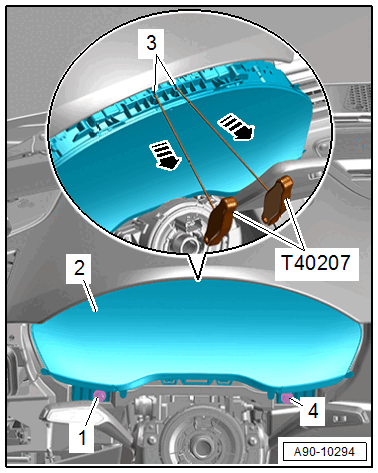

-- Remove the bolts -1 and 4-.
-- Guide the :T40207 between the instrument panel and instrument cluster and place it on both openings -3-.
-- Using the :T40207 , remove the instrument cluster -2- from the retainer -arrows- and tilt toward the rear.
-- Disconnect the connector -1-.
-- Mid instrument cluster: disconnect the connector -2- for the fiber-optic cable.
-- Seal the open wiring harness connector -2- of the fiber-optic cable with the : VAS6223/9 -1-.
TIP:
The protective cap prevents contamination of or mechanical damage to the front surface of the fiber-optic cable which would impair light transmission.
-- Remove the instrument cluster on the front passenger side between the steering wheel and the instrument panel.
