Overview - Front Passenger Airbag

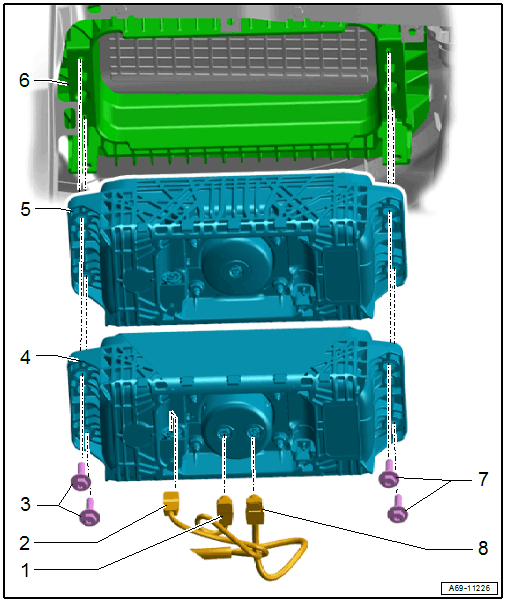

Fig 1: Exploded View Of Front Passenger Airbag

Courtesy of AUDI OF AMERICA, LLC

Connector
- For Front Passenger Airbag Igniter 2 -N132-
Connector
- For Front Passenger Airbag Release Valve Igniter -N491-
Bolts
- 8 Nm
- Replace after removing.
Dual-Stage Front Passenger Airbag
- With
  - Front Passenger Airbag Igniter 1 -N131-
  - Front Passenger Airbag Igniter 2 -N132-
  - Front Passenger Airbag Release Valve Igniter -N491-
  WARNING:
  Risk of injury due to involuntary deployment.
  - Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING ON PYROTECHNIC COMPONENTS .
- Removing and Installing. Refer to FRONT PASSENGER AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
Single-Stage Front Passenger Airbag
- With
  - Front Passenger Airbag Igniter 1 -N131-
  - Front Passenger Airbag Release Valve Igniter -N491-
  WARNING:
  Risk of injury due to involuntary deployment.
  - Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING ON PYROTECHNIC COMPONENTS .
- Removing and Installing. Refer to FRONT PASSENGER AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
Instrument Panel
- Replace the instrument panel after an airbag has deployed. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
Bolts
- 8 Nm
- Replace after removing.
Connector
- For Front Passenger Airbag Igniter 1 -N131-
