Overview - Camshaft Housing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2023 Audi SQ8, 2023 Audi RS Q8, 2022 Audi SQ8, 2022 Audi RS Q8, and 2021 Audi SQ8. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Exploded View Of Camshaft Housing

Courtesy of AUDI OF AMERICA, LLC

Bearing Cap
- Removing and Installing. Refer to CAMSHAFT, REMOVING AND INSTALLING .
- Pay attention to the camshaft housing pairing number and bearing cap. Refer to Fig 6.
Alignment Sleeves
Axial Bearing
Seal
- Replace after removing
Plugs
- Replace after removing
Bolt
- Tightening specification. Refer to OVERVIEW - VACUUM PUMP (4M) , OVERVIEW - VACUUM PUMP (4MN) .
Bracket
- For the lines
- There are different versions. Refer to the appropriate Electronic Parts Information.
Bolt
- Tightening specification. Refer to OVERVIEW - VACUUM PUMP (4M) , OVERVIEW - VACUUM PUMP (4MN) .
Bolt
- Tightening Specifications and Sequence:
  - Cylinder bank 1 (right). Refer to Fig 2.
  - Cylinder bank 2 (left). Refer to Fig 3.
Bolt
- 9 Nm
Ball Pin
- 9 Nm
Heat Shield
Bolt
- 5 Nm
Cam Actuator
- Removing and Installing. Refer to CAM ACTUATOR, REMOVING AND INSTALLING .
O-Ring
- Included in a delivery package OVERVIEW - CAMSHAFT HOUSING, cannot be delivered separately
- coat with engine oil
- Check for damage
Connection
Bolt
- Tightening specification. Refer to .
Camshaft Housing
- Shown for cylinder bank 2 (left)
- Removing and Installing. Refer to CAMSHAFT HOUSING, REMOVING AND INSTALLING .
- Pay attention to the camshaft housing pairing number and bearing cap. Refer to Fig 6.
- Pay attention to the camshaft housing pairing number and cylinder head. Refer to Fig 5.
O-Ring
- Replace after removing
Choke Valve
- For the oil separator
Exhaust Camshaft
- Removing and Installing. Refer to CAMSHAFT, REMOVING AND INSTALLING .
- Axial play, measuring. Refer to CAMSHAFT, MEASURING AXIAL CLEARANCE .
- Radial play, measuring. Refer to CAMSHAFT, MEASURING RADIAL CLEARANCE .
- Maximum run out: 0.04 mm
Axial Bearing
Intake Camshaft
- Removing and Installing. Refer to CAMSHAFT, REMOVING AND INSTALLING .
- Axial play, measuring. Refer to CAMSHAFT, MEASURING AXIAL CLEARANCE .
- Radial play, measuring. Refer to CAMSHAFT, MEASURING RADIAL CLEARANCE .
- Maximum run out: 0.04 mm
Alignment Sleeves
Bearing Cap
- Removing and Installing. Refer to CAMSHAFT, REMOVING AND INSTALLING .
- Pay attention to the camshaft housing pairing number and bearing cap. Refer to Fig 6.
Bolts
- Replace after removing
- Tightening Specifications and Sequence. Refer to Fig 4.

Cylinder Bank 1 (Right) Camshaft Housing - Tightening Specification and Sequence

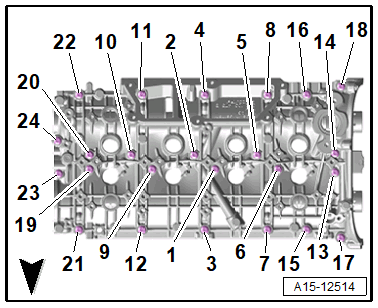

Fig 2: Cylinder Bank 1 (Right) Camshaft Housing - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

These multiple tightenings to 9 Nm take into account the shrinkage of the components.

-- Tighten the bolts in steps as shown:

Step	Bolts	Tightening Specification
1.	-1 through 24-	Install all the way by hand The camshaft housing contact surface must lay entirely on top of the cylinder head
2.	-1 through 24-	9 Nm
3.	-1 through 24-	9 Nm

Cylinder Bank 2 (Left) Camshaft Housing - Tightening Specification and Sequence

Fig 3: Cylinder Bank 2 (Left) Camshaft Housing - Tightening Specification and Sequence

Courtesy of AUDI OF AMERICA, LLC

These multiple tightenings to 9 Nm take into account the shrinkage of the components.

-- Tighten the bolts in steps as shown:

Step	Bolts	Tightening Specification
1.	-1 through 24-	Install all the way by hand The camshaft housing contact surface must lay entirely on top of the cylinder head
2.	-1 through 24-	9 Nm
3.	-1 through 24-	9 Nm

Camshafts bearing cap - tightening specification and sequence

Fig 4: Camshafts Bearing Cap - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

Cylinder bank 1 (right) is shown.

Replace bolts that were tightened with an additional turn after removing them.

-- Tighten the bolts in steps as shown:

Exhaust camshaft -6-

Step	Bolts	Tightening specification/additional turn
1.	-1 through 5-	Install all the way by hand The bearing cap must contact the entire contact surface of the camshaft housing.
2.	-1 through 5-	3 Nm
3.	-1 through 5-	30° additional turn

Intake camshaft -7-

Step	Bolts	Tightening specification/additional turn
1.	-8 through 12-	Install all the way by hand The bearing cap must contact the entire contact surface of the camshaft housing.
2.	-8 through 12-	3 Nm
3.	-8 through 12-	30° additional turn

Camshaft housing and cylinder head pairing number

Fig 5: Camshaft Housing and Cylinder Head Pairing Number

Courtesy of AUDI OF AMERICA, LLC

Shown on the cylinder bank 2 (left).

Both four digit numbers must align: XXXX = XXXX.
Each camshaft housing is assigned to a cylinder head with this pairing number.
For the assembly pay attention to the correct allocation.

Bearing cap and camshaft housing pairing number

Fig 6: Bearing Cap and Camshaft Housing Pairing Number

Courtesy of AUDI OF AMERICA, LLC

Shown on the cylinder bank 2 (left).

The three digit numbers -2- on the bearing cap -arrows- must align with the last three digits of the four digit number -1- on the camshaft housing.
Each bearing cap is assigned to a camshaft housing with this pairing number.
For the assembly pay attention to the correct allocation.

Plug - Tightening Specification

Fig 7: Plug - Tightening Specification

Courtesy of AUDI OF AMERICA, LLC

Component Location: in Cylinder Bank 1 (Right) Camshaft Housing

-- Tighten the plug -arrow- with a new seal to 15 Nm. (Shown on Audi A8).
