Oil Supply Lines On Turbocharger, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2023 Audi SQ8, 2023 Audi RS Q8, 2022 Audi SQ8, 2022 Audi RS Q8, and 2021 Audi SQ8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the upper coolant lines on turbocharger. Refer to UPPER COOLANT LINES ON TURBOCHARGER, REMOVING AND INSTALLING .
Engine codes DWKA/DWLA/DWNB/DWPA/DWRB:
-- Remove the right turbocharger. Refer to TURBOCHARGER, REMOVING CYLINDER BANK 1 (RIGHT), ENGINE CODES DWKA/DWLA/DWNB/DWPA/DWRB .
All Engine Codes:
-- Remove the oil filter element. Refer to ENGINE OIL .

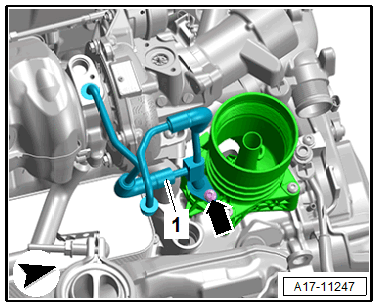

-- Remove the bolt -arrow-, remove the oil supply line -1- and remove.
