Upper Coolant Lines On Turbocharger, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2023 Audi SQ8, 2023 Audi RS Q8, 2022 Audi SQ8, 2022 Audi RS Q8, and 2021 Audi SQ8. However, it is still accessible from the selected car via links, so may be relevant.

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Remove the engine cover and heat shield. Refer to ENGINE COVER .

Engine codes DWKA/DWLA/DWNB/DWPA/DWRB:

-- Remove the Oxygen Sensor 1 Before Catalytic Converter -GX10- and Oxygen Sensor 2 Before Catalytic Converter -GX11-. Refer to HEATED OXYGEN SENSOR, REMOVING AND INSTALLING .

Vehicle without particulate filter:

Courtesy of AUDI

-- Remove the corresponding front muffler. Refer to FRONT MUFFLER, REMOVING AND INSTALLING .

-- Loosen the corresponding screw-type clamp -1 and 2- and move the catalytic converter toward the rear.

Vehicles with a particulate filter:

-- Remove the corresponding particulate filter. Refer to PARTICULATE FILTER, REMOVING AND INSTALLING .

Continuation for All Vehicles:

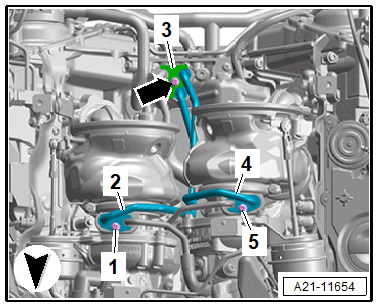

Courtesy of AUDI

-- Remove the bolt -arrow- and then remove the retaining plate -3-.

Lest upper coolant line:

-- Remove the bolt -5- and remove the coolant line -4-.

Right upper coolant line:

Engine codes DWKA/DWLA/DWNB/DWPA/DWRB: left upper coolant line.

-- Remove the bolt -1- and remove the coolant line -2-.
