All-Wheel Drive Clutch Actuator 2 -V623-, REMOVING AND INSTALLING, 0B0 "quattro ultra", 09R "quattro ultra"

WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

-- Disconnect the connector from the All-Wheel Drive Clutch Actuator 2 -- -2-.

Courtesy of AUDI

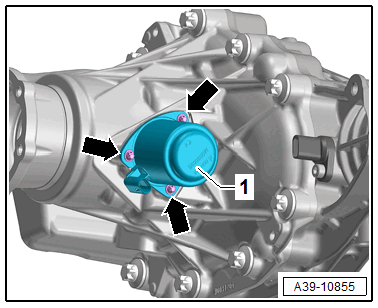

-- Remove the bolts -arrows- and then remove the Clutch Actuator -- -1-.

Courtesy of AUDI

-- At the same time, guide the plunger of the Clutch Actuator -- -arrow B- out of the locking latch groove -arrow A-.

Courtesy of AUDI

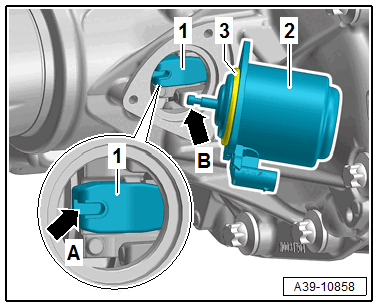

Installing

-- Check the correct seating of the seal -3-.

Courtesy of AUDI

-- Pull the locking latch -1- out slightly and keep it in this position.

-- Now guide the plunger of the Clutch Actuator -- -arrow B- into the locking latch groove -arrow A-.

-- Insert the Clutch Actuator -- -1- and tighten the bolts -arrows-. Tightening specification OVERVIEW - FINAL DRIVE, DISASSEMBLING AND ASSEMBLING, 0B0 "quattro ultra", 09R "quattro ultra".

Courtesy of AUDI

-- Attach the connector -2-.

Courtesy of AUDI

-- Check the fluid level. Refer to GEAR OIL LEVEL, CHECKING, 0B0 "quattro ultra" .
