Final Drive Identification, 0DB, 0D2 And 0G1 / 0G2
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
The "0DB" rear final drive is assigned to the following transmissions:
- 7-Speed Dual Clutch Transmission 0CK AWD
The "0D2" and "0G2" rear final drive is assigned to the following transmissions:
- 8-Speed Automatic Transmission 0D5 AWD
- 8-Speed Automatic Transmission 0D7 AWD (only Q7 Hybrid)
Rear final drive allocation
- Refer to TRANSMISSION/ENGINE ALLOCATION
Location on Rear Final Drive 0DB, 0D2 and 0G1 / 0G2
- -Arrow A- barcode sticker with part number and production date
- -Arrow B- codes, serial number and production date

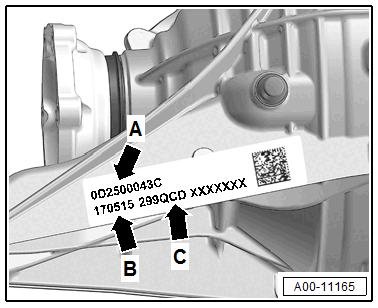

Example of barcode sticker with part number and production date
- -Arrow A- final drive >>0D2<< with part number (example: 0D2 500 043C)
- -Arrow B- rear final drive build date
| Example: | 17 | 05 | 15 |
|---|---|---|---|
| I | I | I | |
| Day | Month | Production year -2015- |
- -Arrow C- code -QCD-
Additional data can be ignored.

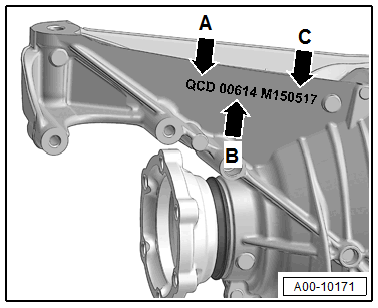

Example of date of manufacture of the rear final drive
- -Arrow A- code -QCD-
- -Arrow B- serial number -00614-
- -Arrow C- production date
| Example: | QCD | 00614 | M | 15 | 05 | 17 |
|---|---|---|---|---|---|---|
| I | I | I | I | l | l | |
| Codes | Series number | Manufacturer | Production year -2015- | Month | Day |
Additional data can be ignored.
- When installing a new rear final drive, not only the final drive code but also the PR number and the vehicle engine code must be verified in the appropriate Electronic Parts Information. This is the only way to assure the correct allocation.
