Upper Air Duct Pipe, Removing And Installing, Engine Code DWRB: Removing
WARNING: This page is about a different car, the 2024 Audi SQ7 and 2023 Audi SQ7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .
-- Remove the reinforcement brace. Refer to OVERVIEW - LOCK CARRIER .

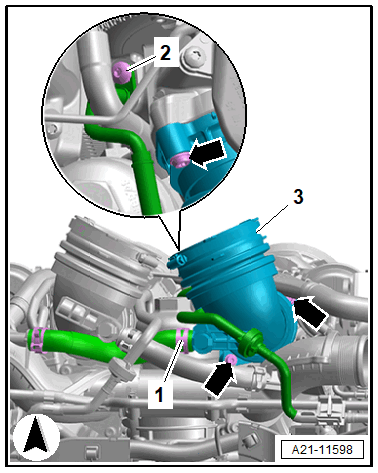

Left Upper Air Duct Pipe:
-- Remove the bolt -2- and remove the lines from the EVAP system and push slightly to the side.
-- Remove the bolts -arrows-.
-- Loosen the hose clamp -1-, remove the air duct hose and remove the air duct pipe -3-.

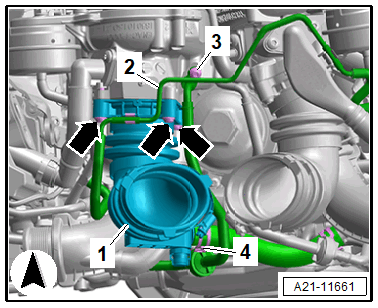

Right Upper Air Duct Pipe:
-- Free up the vacuum line -2-.
-- Remove the bolt -3- and remove the lines from the EVAP system and push slightly to the side.
-- Remove the bolts -arrows-.
-- Loosen the hose clamp -4-, remove the air duct hose and remove the air duct pipe -1-.
