Charge Air Pressure Sensor -G31-, Removing And Installing, 2.9L Engine

Removal - Vehicles with Version 1 Charge Air System:

-- Loosen the hose clamps -1 and 3- and remove the air duct hose.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

Fig 1: Charge Air Pressure Sensor -G31- - Component Location, 2.9L Engine

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2- and the Charge Air Pressure Sensor -G31-.

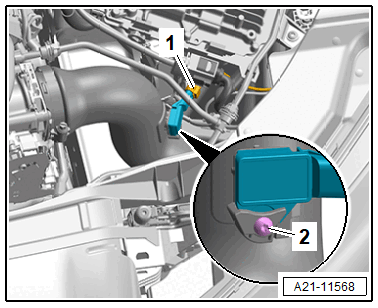

Removal - Vehicles with Version 2 Charge Air System:

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

-- Remove the bolt -2- and the Charge Air Pressure Sensor -G31-.

Installing

Install in reverse order of removal and note the following:

• Check the O-ring for damage. Refer to OVERVIEW - CHARGE AIR SYSTEM .

Tightening Specifications

• Refer to OVERVIEW - CHARGE AIR SYSTEM
• Refer to OVERVIEW - CHARGE AIR HOSE CONNECTIONS .
