Engine And Transmission, Separating, With Dual-Clutch Transmission

WARNING: This page is about a different car, the 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi Q5 e, and 2023 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Procedure

Version with Catalytic Converters and Particulate Filter:

GWWA26-12313Courtesy of AUDI
CAUTION:

Risk of injury due to flying soot particles.

Irritation and injury to skin and eyes possible.

- Wear protective eyewear.

- Wear safety gloves.

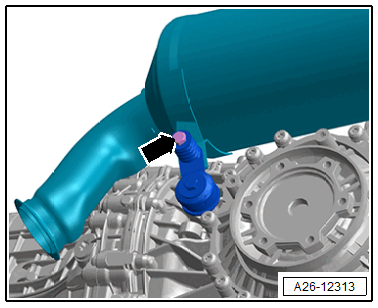

-- Remove the bolt -arrow- from the catalytic converter bracket.

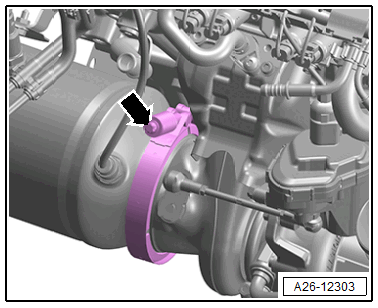

-- Loosen the screw-type clamp -arrow- and remove the catalytic converter.

GWWA26-12303Courtesy of AUDI

Continuation for All Vehicles:

GWWA19-13293Courtesy of AUDI

-- Place a cloth underneath to catch leaking coolant.

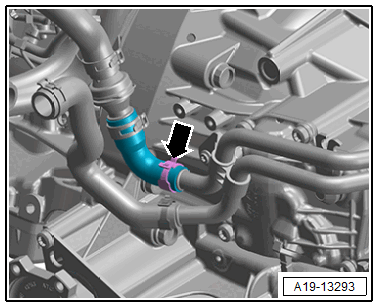

-- Loosen the hose clamp -arrow- and remove the coolant hose.

-- Remove the lower cover -1- from the transmission in direction of -arrow-.

GWWA10-11774Courtesy of AUDI

-- To do so, use the Wrench - 21mm:T40263  , Adapter:T40314  and 24 mm socket to counterhold the crankshaft at the vibration damper.

Fig 8: Using T40263 & T40314
GWWA13-11145Courtesy of AUDI
CAUTION:

Risk of damaging the engine by the timing mechanism skipping.

- Only let the engine turn in the direction of engine rotation.

-- Remove the three bolts -arrow- on the drive plate -1-. Turn the crankshaft an additional 120° in the direction of engine rotation.

GWWA37-11222Courtesy of AUDI

-- Set up the Scissor Lift Table:VAS6131B  as follows:

Fig 9: Scissor Lift Chart
GWWA10-11888Courtesy of AUDI
Table Coordinates Components from the Scissor Lift Table - Audi Set:VAS6131/10  , Scissor Lift Table - A8 Set - Adapter:VAS6131/11-2  , Scissor Lift Table - Q7 Set - Articulated Joint Support:VAS6131/13-7  and the Engine Support:T10533/5
D4 Scissor Lift Table - Q7 Set - Articulated Joint Support:VAS6131/13-7  with Engine Support :T10533/5
C10 /10-1 /10-4 /10-5 /11-2
F10 /10-1 /10-4 /10-5 /10-6

-- Tighten the Scissor Lift Table - Q7 Set - Articulated Joint Support:VAS6131/13-7  using two 12M nuts -arrow- and with the Engine Support: T10533/5  on the right side of the engine as shown.

GWWA10-12424Courtesy of AUDI

-- Tighten the engine support to the Scissor Lift Table:VAS6131B  to 20 Nm.

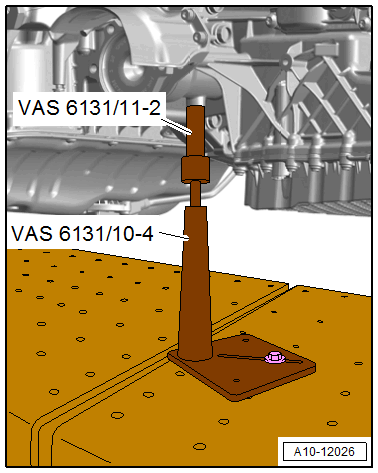

-- Place the mounting element from the Scissor Lift Table - Audi Set:VAS6131/10  and Scissor Lift Table - A6 Set - Adapter:VAS6131/11-2  on the left of the transmission as shown.

GWWA10-12026Courtesy of AUDI

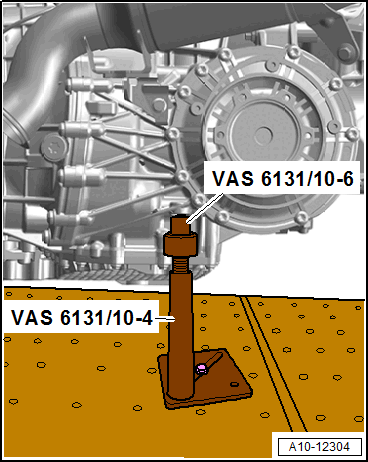

-- Place the mounting element from the Scissor Lift Table - Audi Set:VAS6131/10  as shown on the right side of the transmission.

GWWA10-12304Courtesy of AUDI

-- Turn the left and right spindles upward until all the mounting pins come into contact with the mounting points.

-- Tighten the mounting element base plates to 20 Nm on the Scissor Lift Table:VAS6131B  .

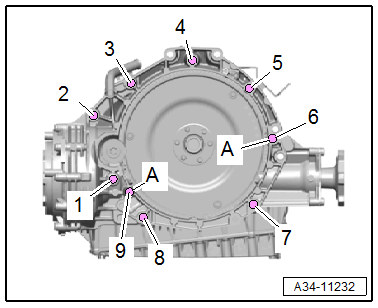

-- Remove the bolts -1 through 9- that connect the engine to the transmission.

Fig 10: Transmission Mounting Bolts and Alignment Sleeves (4-Cylinder TDI Engine)
GWWA34-11232Courtesy of AUDI

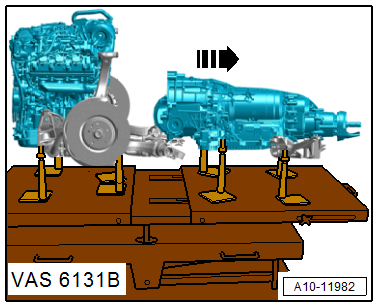

-- Loosen the clamping screws on sides of the Scissor Lift Table:VAS6131B  and pull the rear table top with the transmission slightly toward the rear in direction of -arrow-.

GWWA10-11982Courtesy of AUDI
