Overview - Engine Mount

WARNING: This page is about a different car, the 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi Q5 e, and 2023 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

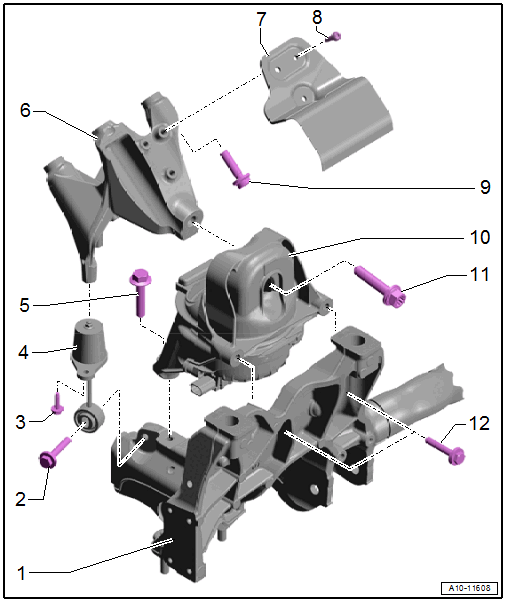

Fig 1: Exploded View Of Engine Mount

Courtesy of AUDI

Subframe
Bolt
- 20 Nm
Bolt
- 10 Nm
Engine Support
- Removing and Installing. Refer to ENGINE SUPPORT BEARING, REMOVING AND INSTALLING .
- Installation position. Refer to Fig 2.
Bolt
- 55 Nm
Engine Support
- There are different versions. Refer to the appropriate Electronic Parts Information for the allocation.
- Removing and Installing. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .
Heat Shield
Bolt
- 10 Nm
Bolt
- 55 Nm
Engine Mount
- With
  - Left Electrohydraulic Engine Mount Solenoid Valve -N144-
  - Right Electrohydraulic Engine Mount Solenoid Valve -N145-
- The solenoid valve is integrated in the engine mount; cannot be replaced separately if faulty
- Removing and Installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
Bolt
- 90 Nm + 90°
- Replace after removing
Bolt
- 30 Nm
  Engine Support Bearing Installation Position

  Fig 2: Support Bearing, Installation Position
  Courtesy of AUDI
  - The raised section -2- of the engine support must engage into the opening -1- on the engine support bearing.
