Engine Support Bearing, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi Q5 e, and 2023 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the bolts -1 and 3-, remove the engine/motor support -2-.

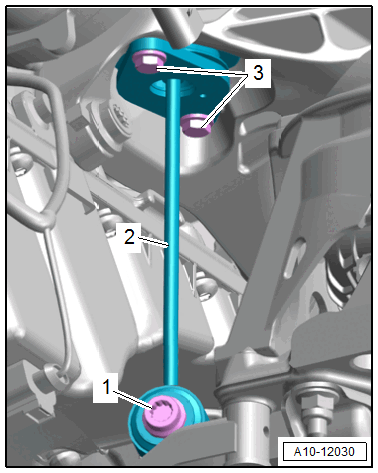

Fig 1: Identifying Bolts & Support Bearing
GWWA10-12030Courtesy of AUDI
