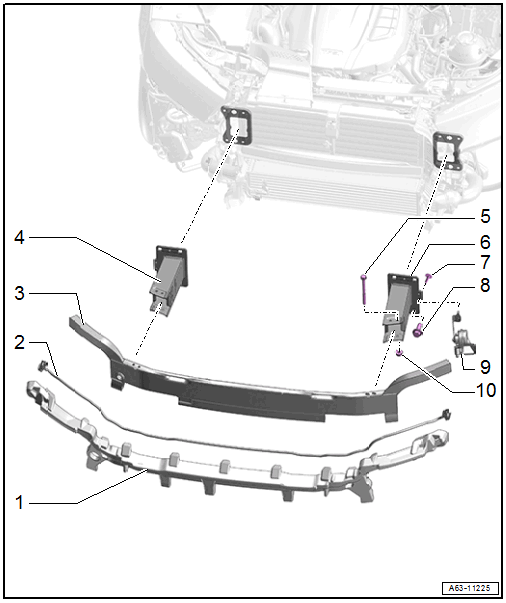

Overview - Impact Member
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Molded Foam Part
- Market-Specific Version
- Removing and Installing. Refer to MOLDED FOAM PART, REMOVING AND INSTALLING .
- Driver Side Pedestrian Protection Crash Sensor 2 -G851- /Front Passenger Side Pedestrian Protection Crash Sensor 2 -G852-
- Market-Specific Version
- Unit with pressure hose
- Observe the conditions for replacing the Driver Side Pedestrian Protection Crash Sensor 2 -G851- /Front Passenger Side Pedestrian Protection Crash Sensor 2 -G852-. Refer to OVERVIEW - PEDESTRIAN PROTECTION .
- Overview. Refer to OVERVIEW - PEDESTRIAN PROTECTION .
- Impact Member
- Removing and Installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING .
- Impact Member Mount
- Right
- Removing and Installing. Refer to IMPACT MEMBER MOUNT, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- Tightening specification. Refer to Fig 2.
- Impact Member Mount
- Left
- Removing and Installing. Refer to IMPACT MEMBER MOUNT, REMOVING AND INSTALLING .
- Bolt
- Tightening specification. Refer to OVERVIEW - HORN .
- Bolt
- Quantity: 4
- 55 Nm
- Bracket with Horn
- Removing and Installing. Refer to the appropriate Service Information. .
- Nut
- Quantity: 2
Front Impact Member - Tightening Specification and Sequence
-- Tighten the bolts -A- to 23 Nm in the following sequence: -1 through 4-.
