Overview - MECHATRONIC
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
Vehicles with TFSI e (0DK), refer to the appropriate Service Information. .
- Transmission Fluid Pan
- Removing and Installing. Refer to TRANSMISSION FLUID PAN, REMOVING AND INSTALLING .
- Tightening specification and sequence. Refer to Fig 2.
- Bolt
- M6 X 30
- Replace after removing
- Tightening specification and sequence. Refer to Fig 2.
- Seal
- Replace after removing
- Bolt
- Replace after removing
- Tightening specification and sequence. Refer to Fig 4.
- Bracket
- Hydraulic Pressure Sensor 1 -G545- and Hydraulic Pressure Sensor 2 -G546-
- Removing and Installing. Refer to Hydraulic Pressure Sensor 1 -G545- AND Hydraulic Pressure Sensor 2 -G546-, REMOVING AND INSTALLING .
- Seals
- Replace after removing
- Contact Element
- Bolt
- M6 X 25
- Replace after removing
- 3 Nm +90°
- O-Ring
- Replace after removing
- Bleed Pipe
- Dust Ring
- Seals
- Replace after removing
- Seal
- For vehicles with Parking Lock Solenoid -N486-
- Replace after removing
- Mechatronic
- Removing and Installing. Refer to MECHATRONIC, REMOVING AND INSTALLING .
- Mechatronic Bolts
- M6 X 90
- Tightening specification and sequence. Refer to Fig 3.
- Bolt
- M6 X 22
- For vehicles with Parking Lock Solenoid -N486-
- Replace after removing
- 3 Nm +90°

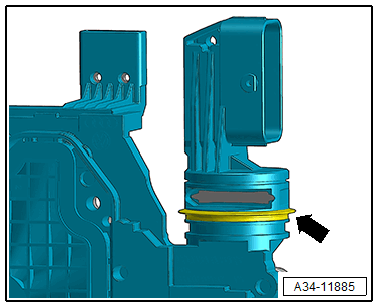

- Seal
- Replace after removing
- Refer to Figure
- Transmission Control Module -J217-
- Oil Pipe
- For vehicles with Parking Lock Solenoid -N486-
- Cable Guide
- Replace after removing
- Seals
- Replace after removing
- ATF Pipe
- Replace after removing
- Seals
- Replace after removing

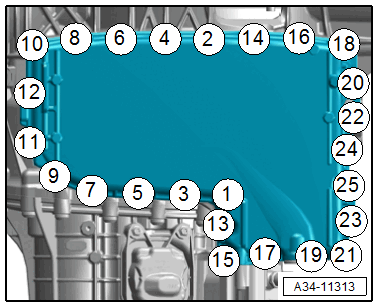

Transmission fluid pan - tightening specification and sequence
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1 | -1 to 25- | Install all the way by hand |
| 2 | -1 to 25- | 3 Nm for the aluminum bolt, 8 Nm for the steel bolt |
| 3 | -1 to 25- | 90° additional turn |

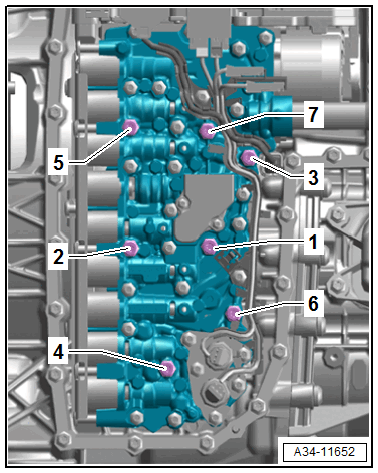

Mechatronic - Tightening Specification and Sequence
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1 | -1 to 7- | Install all the way by hand |
| 2 | -1 to 7- | 8 Nm |
| 3 | -1 to 7- | 120° additional turn |

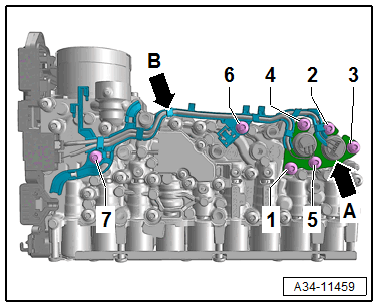

Hydraulic Pressure Sensor 1G545 and Hydraulic Pressure Sensor 2G546 - tightening specification and sequence
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1 | -1 to 7- | Install all the way by hand |
| 2 | -1 to 7- | 8 Nm |
| 3 | -1 to 7- | 120° additional turn |
