SUBFRAME Rear Bonded Rubber Bushing, Replacing: Installing

Courtesy of AUDI OF AMERICA, LLC

-- Pry out the anti-twist mechanism -1- in the area of the retaining tabs -arrows- with a screwdriver from the bonded rubber bushing alternating from side to side.

-- Pry out the plastic insert from the bonded rubber bushing.

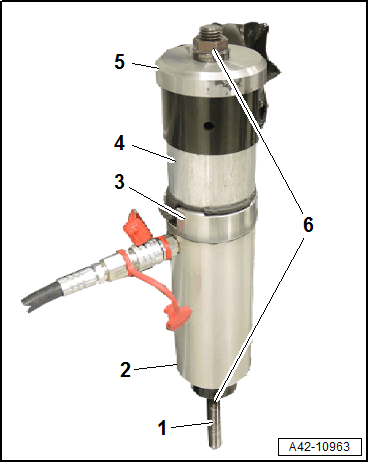

-- Arrange the special tools as shown.

Courtesy of AUDI OF AMERICA, LLC

1. : T10205/8-1
2. : VAS6178
3. : T40328/5
4. Bonded Rubber Bushing
5. : T40328/6
6. : T10205/8-2

-- Align the bonded rubber bushing with the markings made previously and push it in until the collar comes in contact with the bushing in the subframe without any gaps.

• If necessary, tension and press over cylinder several times.
• To prevent damage to the outer race, while pushing in, pay attention that the bonded rubber bushing is not tilted.

• The ends of the rubber bead on the bonded rubber bushing must align with the markings -arrows- on the subframe.

  Courtesy of AUDI OF AMERICA, LLC

• Correct any paint damage on subframe with corrosion protection, primer and black top coat.

-- Install the plastic insert -1- and anti-twist mechanism -2- on the hy bonded rubber bushing.

Further installation is performed in reverse order of removal, while noting the following:

-- Remove the : T40329  . Refer to SUBFRAME, SECURING .

-- Install the driveshaft. Refer to the appropriate Service Information .
