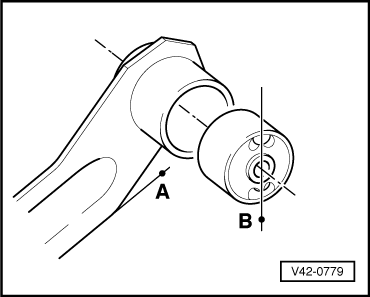

Fig. 2 Installation position of bonded rubber bushing
 Courtesy of AUDI OF AMERICA, LLC
|
-- Press in bushing until flush.
NOTE:
Angle between line -A- and line -B- = 90°.
The kidney-shaped recesses in the bushing are to align with line -B-. Permissible variation = +4°.
