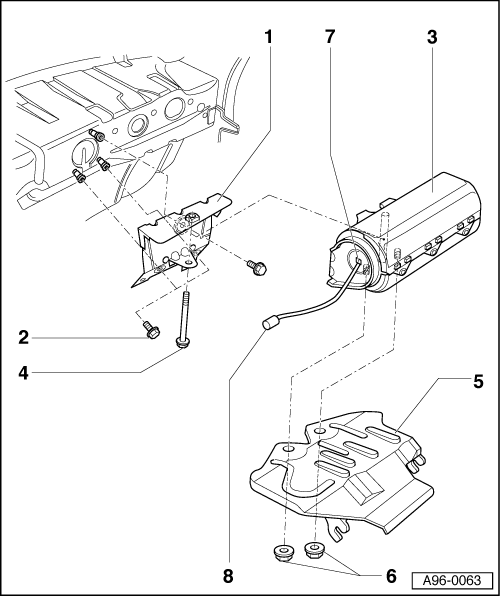

Passenger Side Airbag, Airbag III: Installing
-- Install in reverse order of removal.
NOTE:
Airbag mounting plate -5- MUST be installed to ensure normal function of the passenger airbag.
When installing the airbag always replace hex bolt -4- with a new one. Verify that bolt/nut threads are clean.
 Courtesy of AUDI OF AMERICA, LLC
|
