Automatic Seat Belt TENSIONER Assembly Overview

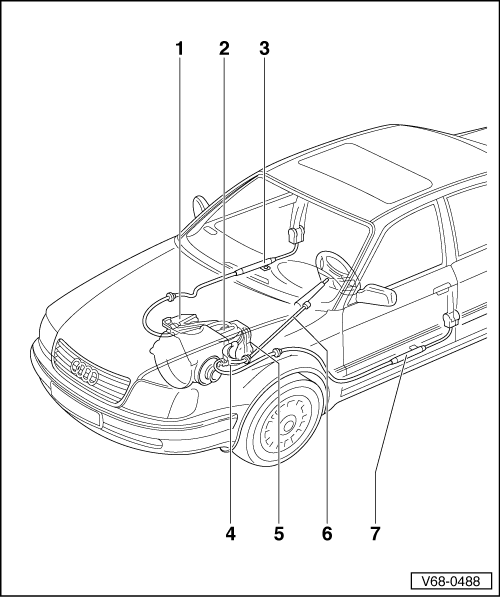

Fig 1: Automatic Seat Belt Tensioner Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Retaining Bracket, Right
   • Removing and installing, refer to RETAINING BRACKET ASSEMBLY OVERVIEW, RIGHT .
2. Cable Guide Bracket
   • Mounted on transmission.
   • Removing and installing, refer to Cable Guide Brackets, Removing and Installing .
3. Retractor Cable, with Coupling Tube, Right
   • Removing and installing, refer to AUTOMATIC SEAT BELT TENSIONING SYSTEM, CHECKING, S4 .
4. Retaining Bracket, Left
   • Removing and installing, refer to RETAINING BRACKET ASSEMBLY OVERVIEW, LEFT .
5. Cable Bracket
6. Not for USA Vehicles
7. Retractor Cable, with Coupling Tube, Left
   • Removing and installing, refer to AUTOMATIC SEAT BELT TENSIONING SYSTEM, CHECKING, S4 .
