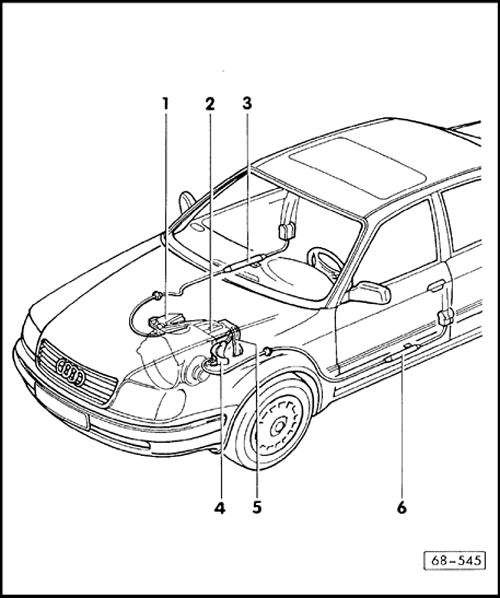

Automatic Seat Belt TENSIONER Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. Retaining Bracket, Right
   • Note transmission version.
   • Removing and installing, refer to RETAINING BRACKET ASSEMBLY OVERVIEW, RIGHT .
2. Cable Guide Bracket
   • Note transmission version.
   • Removing and installing, refer to CABLE GUIDE BRACKET ASSEMBLY OVERVIEW .
3. Retractor Cable, Right
   • Note transmission version.
   • Removing, refer to Cable Routing in Engine Compartment .
4. Retaining Bracket, Left
   • Note transmission version.
   • Removing and installing, refer to RETAINING BRACKET ASSEMBLY OVERVIEW, LEFT .
5. Cable Bracket
   • Note transmission version.
6. Retractor Cable, Left
   • Note transmission version.
   • Removing, refer to Cable Routing in Engine Compartment .
