Hood Release Cable Assembly Overview

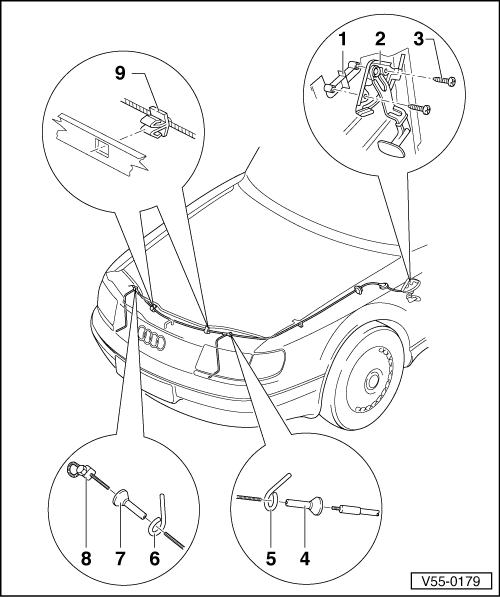

GWWV55-0179Courtesy of AUDI OF AMERICA, LLC
  1. Spacer
  2. Release Mechanism
    • Hook in release cable.
  3. Bolt
    • 4.0 Nm (35 in lb)
    • Self-tapping
  4. Guide Bushing
  5. Locking Lever, Left Lock Pin
  6. Locking Lever, Right Lock Pin
  7. Guide Bushing
  8. Clamping Piece
    • Bend release cable behind clamping piece.
  9. Release Cable Clip
