Adjusting Tailgate Handle To License Bracket

-- Pull up on handle.

-- Screw bolt for handle depth adjustment in or out arrow (bolt not shown).

-- Secure bolt with nut.

-- Secure height adjustment through lateral slots on left side with nut.

• 2.5 ± 1.0 Nm (0.098 ± 0.04 in.)

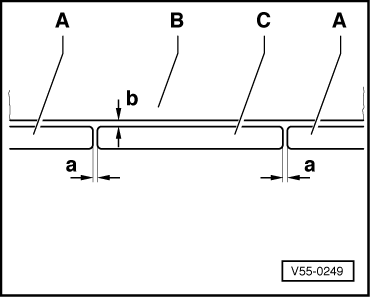

Dimensions

Courtesy of AUDI OF AMERICA, LLC

Handle -C- to license bracket -A-

• Dimension -a- = 3.0 ± 0.2 mm (0.118 ± 0.008 in.)

Handle -C- to tailgate -B-

• Dimension -b- = 3.0 ± 0.2 mm (0.118 ± 0.008 in.)
