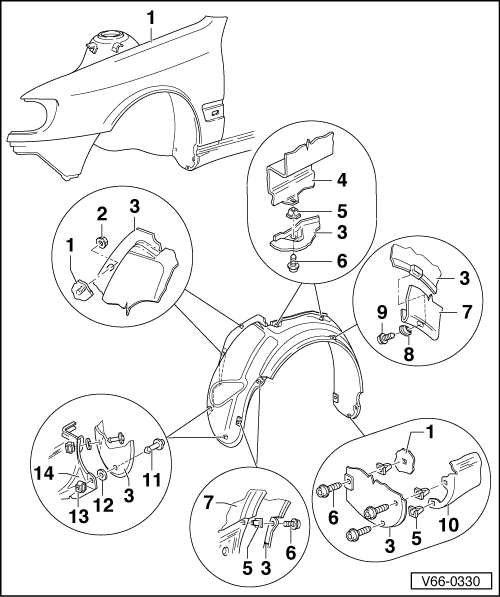

Front Wheel Housing Liner Assembly Overview

Removing:

-- Unscrew nut  FRONT WHEEL HOUSING LINER ASSEMBLY OVERVIEW => List Item: Clip Nut.

-- Unscrew bolts  FRONT WHEEL HOUSING LINER ASSEMBLY OVERVIEW => List Item: Bolt and  FRONT WHEEL HOUSING LINER ASSEMBLY OVERVIEW => List Item: Bolt.

-- Release clamping pins  FRONT WHEEL HOUSING LINER ASSEMBLY OVERVIEW => List Item: Clamping Pin.

-- Pull liner away from fender, and pull out downward.

Installing:

-- Install all components in reverse order of removal.

• 2.0 Nm (18 in lb)

• 1.0 Nm (9 in lb)
• Self-tapping
