Large Reflector, Removing
-- Versions with TDI engine: remove the rear underbody trim panel OVERVIEW - UNDERBODY TRIM PANELS .
-- S line and S6 versions: remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

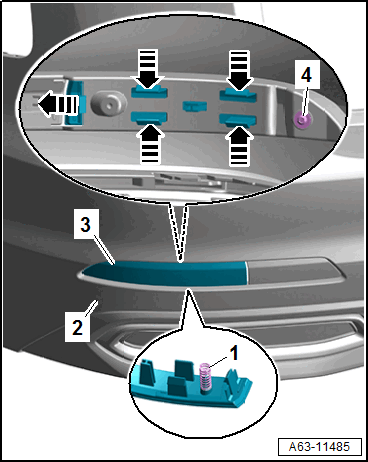

-- Remove the bolt -4-.
-- Release the retainers -arrows-.
-- Remove the reflector -3- from the bumper cover -2-.
TIP:
The spring force of the spring -1- also assists in the removal of the reflector.
Small Reflector, Removing
-- Remove the large reflector. .

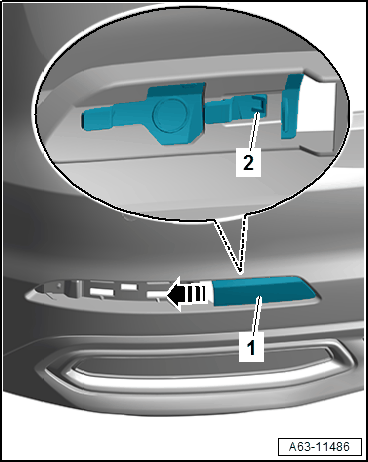

-- Release the retainer -2-.
-- Push the reflector -1- outward -arrow- and remove.
Installing
Install in reverse order of removal.
Tightening Specifications
- Refer to OVERVIEW - BUMPER COVER
