Bumper Cover Lower Section, Removing And Installing, A6: Removing

-- Remove the bolts -arrows- from the bumper cover lower section.

Courtesy of AUDI OF AMERICA, LLC

-- TDI engine: remove the rear underbody trim panel. Refer to OVERVIEW - UNDERBODY TRIM PANELS .

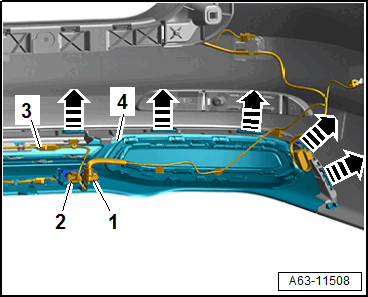

Version 1:

Courtesy of AUDI OF AMERICA, LLC

-- If equipped, disconnect the connector -1- and free up the wiring harness.

-- Disconnect the connector -2- and free up the power rear lid opening sensor 2 -3-.

-- Release the retainers -arrows- and remove the lower section -4- from the bumper cover.

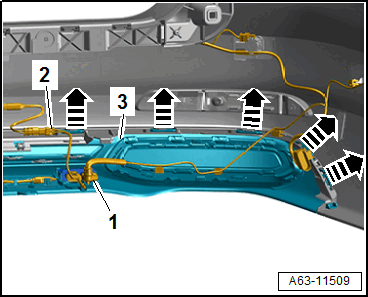

Version 2:

Courtesy of AUDI OF AMERICA, LLC

-- If equipped, disconnect the connector -1- and free up the wiring harness.

-- Disconnect the connector -2-.

-- Release the retainers -arrows- and remove the lower section -3- from the bumper cover.
