Trim, Removing And Installing, A6 S Line, S6: Removing

-- Remove the center air intake grille. Refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING, A6 S LINE, S6 .

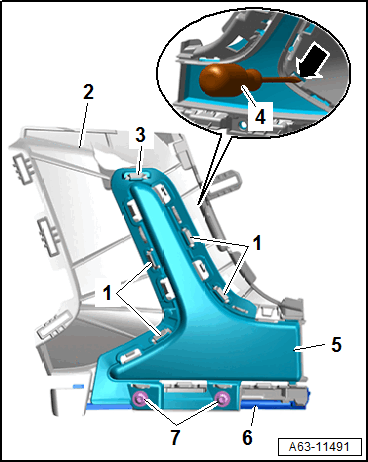

-- Remove the bolts -7-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the retaining strip -6-.

-- Release the catches -1- with a narrow screwdriver -4-

-- Release the catch -3-.

-- Remove the trim -5- from the deformation element -2-.
