Center Air Intake Grille, Removing And Installing, A6 S Line, S6: Removing

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the bumper cover end plate. Refer to BUMPER COVER END PANEL, REMOVING AND INSTALLING .

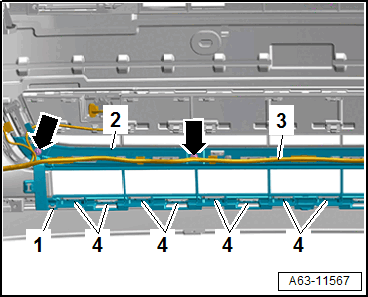

-- Free up the wiring harness -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Release the catches -1 and 4-.

-- Remove the air intake grille -2-.

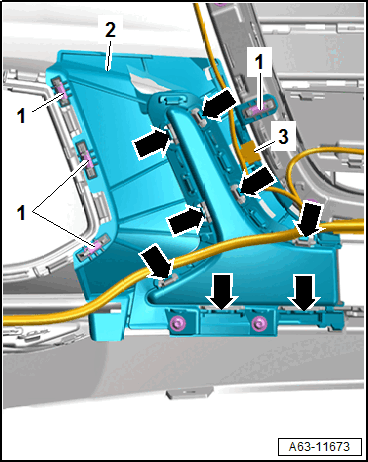

Version 1:

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness -3-.

-- Pry out the clamps -1-.

-- Release the catches -arrows-.

-- Remove the deformation element -2-.

Version 2:

-- Remove the bolts -1-.

-- Release the catches -arrows-.

-- Remove the deformation element -2-.
