Overview - MULTIFUNCTION Steering Wheel

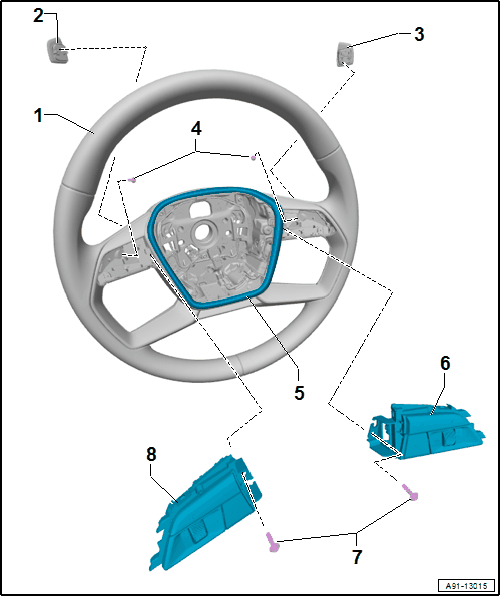

Fig 1: Exploded View Of Multifunction Steering Wheel

Courtesy of AUDI OF AMERICA, LLC

4-Spoke Steering Wheel
Tiptronic Downshift Button -E480-
- Removing and Installing. Refer to Tiptronic Downshift Button -E480- /Tiptronic Upshift Button -E479-, REMOVING AND INSTALLING .
Tiptronic Upshift Button -E479-
- Removing and Installing. Refer to Tiptronic Downshift Button -E480- /Tiptronic Upshift Button -E479-, REMOVING AND INSTALLING .
Bolt
- 1 Nm
Chrome Trim
- Removing and Installing. Refer to OVERVIEW - STEERING WHEEL .
Right Multifunction Buttons on Steering Wheel -E441-
- Removing and Installing. Refer to RIGHT/LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL -E441- / -E440-, REMOVING AND INSTALLING .
Bolt
- 2 Nm
Left Multifunction Buttons on Steering Wheel -E440-
- Removing and Installing. Refer to RIGHT/LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL -E441- / -E440-, REMOVING AND INSTALLING .
