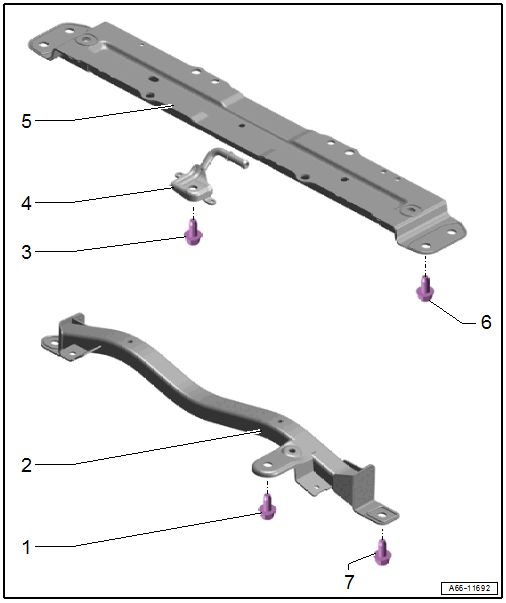

Overview - Tunnel Brace

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 70 Nm
Front Tunnel Brace
- Removing and Installing. Refer to FRONT TUNNEL BRACE, REMOVING AND INSTALLING .
Bolt
- 49 Nm
Mount
- For the center muffler
Rear Tunnel Brace
- Removing and Installing. Refer to REAR TUNNEL BRACE, REMOVING AND INSTALLING .
Bolt
- 49 Nm
- Quantity: 9
Bolt
- 49 Nm
- Quantity: 2
