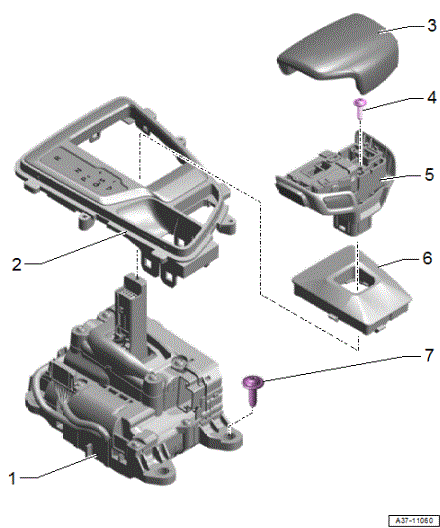

Selector Mechanism in the Vehicle Interior
- Shift Mechanism
- With the following integrated components:
- Selector Lever -E313-
- Selector Lever Position Sensor -G727-
- Transverse Selector Lever Lock Sensor -G868-
- Selector Lever Sensor System Control Module - J587-
- Shift Lock Solenoid -N110-
- Transverse Selector Lever Lock Motor -V577-
- The components cannot be replaced sepa- rately if faulty.
- Removing and Installing. Refer to Shift Mechanism, Removing and Installing .
- With the following integrated components:
- Selector Lever Transmission Range Display -Y5-
- Removing and Installing. Refer to the appropriate Service Information.
- Selector Lever Handle Upper Section
- Removing and Installing. Refer to Selector Lever Handle, Removing and Installing .
- Bolt
- 3.2 N.m
- Not available separately
- Selector Lever Handle, Lower Section
- With the following integrated components:
- Selector Lever Release Button -E681-
- Parking Lock Button -E816-
- The components cannot be replaced separately if faulty.
- Remove and Installing. Refer to Selector Lever Handle, Removing and Installing .
- With the following integrated components:
- Selector Lever Boot
- Removing and Installing. Refer to Selector Lever Boot on Selector Lever Handle, Disconnecting and Assembling .
- Bolt
- 8 N.m
