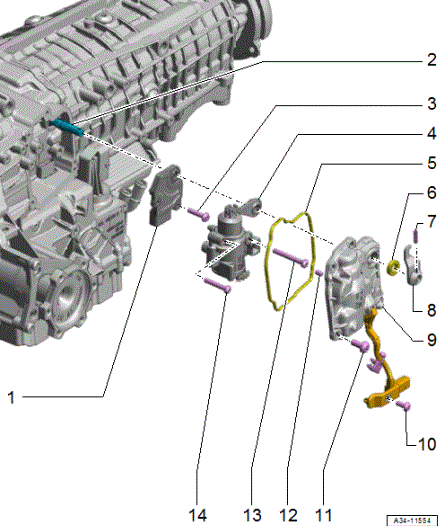

Gearshift Mechanism on Transmission
- Drive Position Sensor -G676-
- Removing and Installing. Refer to Parking Lock Solenoid N486/Drive Position Sensor G676, Removing and Installing .
- Shaft
- For the parking lock
- Bolt
- 3 N.m +90°
- Replace after removing
- M6 x 30
- Parking Lock Solenoid -N486-
- Electro-Hydraulic part
- Removing and Installing. Refer to Parking Lock Solenoid N486/Drive Position Sensor G676, Removing and Installing .
- Seal
- Replace after removing
- Seal
- For the parking lock shaft.
- Replacing. Refer to Parking Lock Shaft Seal, Replacing .
- Spring Pin
- Lever
- For the parking lock
- Removing and Installing. Refer to Parking Lock Shaft Seal, Replacing .
- Cover
- For the parking lock
- With electric wiring harness
- Bolt
- 3 N.m +45°
- Replace after removing
- Bolt
- 8 N.m +60°
- Replace after removing
- M8 x 22
- Alignment Pin
- Quantity: 2
- Bolt
- 8 N.m +180°
- Replace after removing
- M6 x 55
- Bolt
- 3 N.m +90°
- Replace after removing
- M6 x 35
