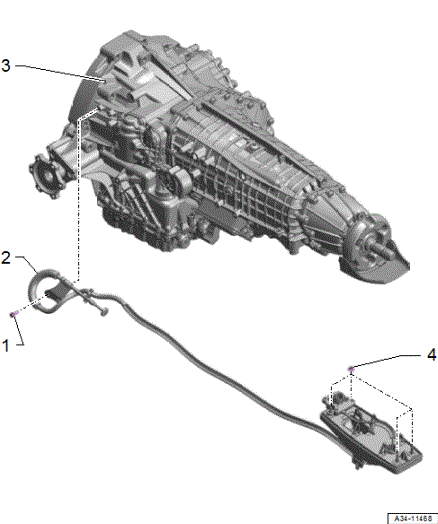

Overview - Parking Lock Emergency Release, A4/A5

Courtesy of AUDI OF AMERICA, LLC

1. Bolt
   • 4 N.m
   • Quantity: 2
2. Emergency Release Cable
   • For the parking lock
   • Do not bend or kink
   • Removing and Installing. Refer to Parking Lock Emergency Release Cable, Removing and Installing, A4/A5 .
3. Transmission
4. Nut
   • 8 N.m
