Auxiliary Radiator, Removing And Installing: Removing

-- Remove the lock carrier cover. Refer to OVERVIEW - BUMPER COVER .

-- Remove the bolts -arrows- and air duct -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Clamp off the coolant hoses using the :3094  .

Courtesy of AUDI OF AMERICA, LLC

-- Place the :VAS6208  underneath.

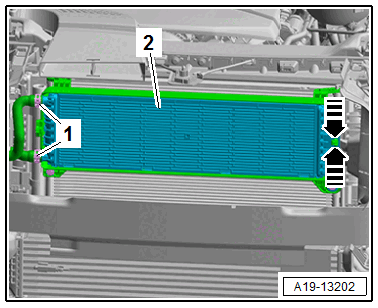

-- Loosen the hose clamps -1- and remove the coolant hoses.

-- Release the retainers -arrows- and remove the auxiliary radiator -2-.
