Thermal Management Coolant Pump 2 -V618-, REMOVING AND INSTALLING: Removing

-- Remove the right front wheel spoiler and loosen the right front wheel housing liners in the front area. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

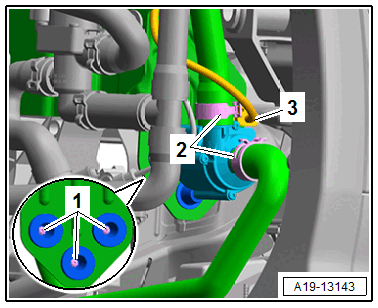

-- Disconnect the connector -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Clamp off the coolant hoses using the :3094  .

-- Place a cloth underneath to catch any escaping coolant.

-- Loosen the clamps -2- and remove the coolant hoses.

-- Remove the bolts -1-, and remove the Thermal Management Coolant Pump 2 -V618-.
