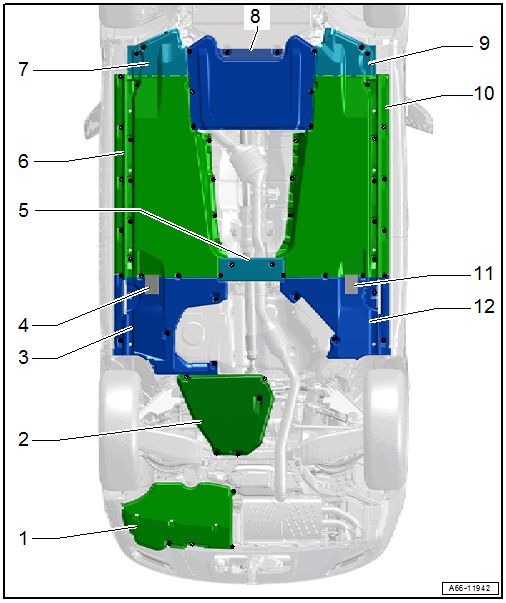

Overview - Underbody Trim Panels
- Side Underbody Trim Panel
- Nut: 2 Nm
- Bolt: 2 Nm
- Removing and Installing. Refer to SIDE UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
- Rear Underbody Trim Panel
- Center
- Removing and Installing. Refer to CENTER REAR UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
- Rear Underbody Trim Panel
- Nut: 2 Nm
- Right
- Removing and Installing. Refer to REAR UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
- Cover
- Right
- Cover
- Nut: 2 Nm
- Bolt: 2 Nm
- For the tunnel brace
- Removing and Installing. Refer to TUNNEL BRACE COVER, REMOVING AND INSTALLING .
- Center Underbody Trim Panel
- Nut with retainer: 2 Nm
- Nut: 2 Nm
- Bolt: 2 Nm
- Right
- Removing and Installing. Refer to CENTER UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
- Front Underbody Panel
- Nut: 2 Nm
- Bolt: 2 Nm
- Right
- Removing and Installing. Refer to FRONT UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
- Tunnel Underbody Trim Panel
- Bolt: 2 Nm
- Removing and Installing. Refer to UNDERBODY TRIM PANEL TUNNEL, REMOVING AND INSTALLING .
- Front Underbody Panel
- Left
- Removing and Installing. Refer to FRONT UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
- Center Underbody Trim Panel
- Left
- Removing and Installing. Refer to CENTER UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
- Cover
- Left
- Rear Underbody Trim Panel
- Left
- Removing and Installing. Refer to REAR UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
