Thermal Management Coolant Pump 4 -V620-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi Q5 e and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front noise insulation. Refer to OVERVIEW - NOISE INSULATION .
-- Remove the front right wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .
-- Loosen the hose clamp -arrow- and remove the air duct hose from the turbocharger.
-- Always seal off any open connections with plugs that are thoroughly cleaned from the :VAS6122 .

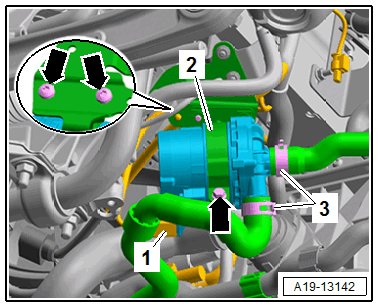

-- Disconnect the connector -1-.
-- Clamp off the coolant hoses using the :3094 .
-- Place a cloth underneath to catch any escaping coolant.
-- Loosen the clamps -3- and remove the coolant hoses.
-- Remove the bolts -arrows-, remove the retaining bracket -2- and the Thermal Management Coolant Pump 4 -V620-.
