Rear Transmission Mount, Removing And Installing, Version 2

WARNING: This page is about a different car, the 2024 Audi Q5 and 2023 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

Transmission Support, Removing with Transmission Mount

Courtesy of AUDI

-- Remove the tunnel crossmember. Refer to OVERVIEW - ASSEMBLY MOUNTS or, Refer to the appropriate Service Information. .

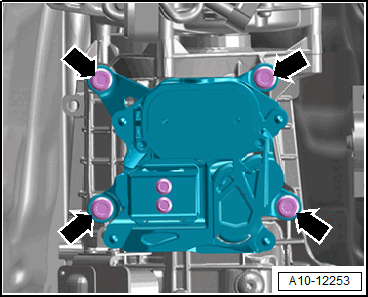

-- Remove the bolts -arrows- and remove the transmission support with the transmission mount from the transmission (example image).

Transmission Mount, Removing

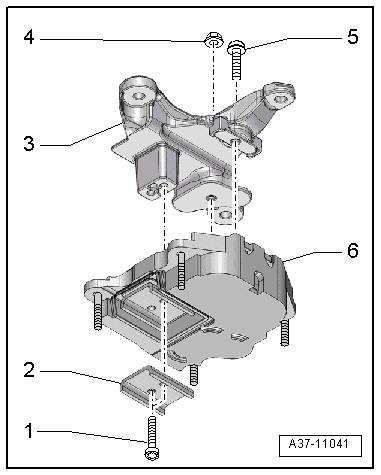

Fig 1: Identifying Bolts, Nut, Transmission Mount And Transmission Support

Courtesy of AUDI

-- Remove the bolts -1- and remove the stop -2- for the transmission mount.

-- Remove the nut -4- and the bolt -5-, and remove the transmission mount -6- from the transmission support -3- (example image).

Installing

Install in the reverse order of removal while noting the following:

Replace bolts that were tightened with an additional turn after removing them.

-- First tighten the nut -4- and bolt -5- hand-tight.

-- Tighten the bolts -1- for the stop -2-.

-- Then tighten the nut -4- and bolt -5-.

Tightening Specifications

Refer to OVERVIEW - ASSEMBLY MOUNTS .
Refer to OVERVIEW - ASSEMBLY MOUNTS .
