Overview - Valve Body

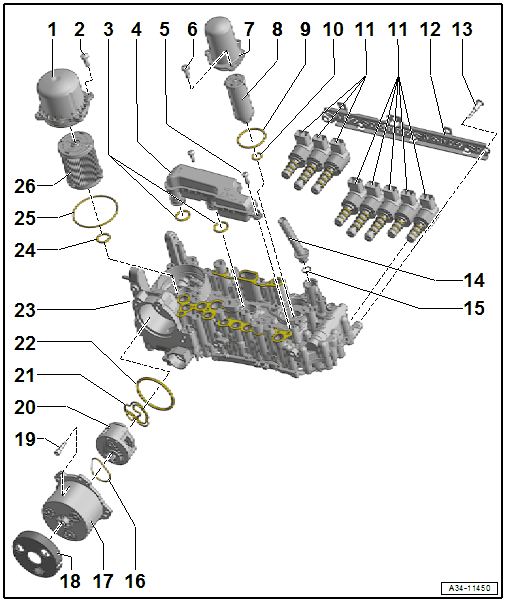

Fig 1: Exploded View Of Valve Body (0CK, 0CJA, 0CLA, 0DN & 0DPA)

Courtesy of AUDI OF AMERICA, LLC

Low Pressure Filter Housing
Bolt
- 8 Nm +60°
- Replace after removing
- M6 X 20
- Quantity: 4
Seal
- Replace after removing
Suction Filter
Bolt
- 3 Nm + 45°
- Replace after removing
- Quantity: 2
- M5 X 18
Bolt
- 8 Nm +90°
- Replace after removing
- Quantity: 3
- M6 X 20
High Pressure Filter Housing
High Pressure Filter
Seal
- Replace after removing
Seal
- Replace after removing
Valve Units
Valve Unit Retainer
Bolt
- 2.5 Nm +60°
- Replace after removing
- Quantity: 8
- M4 X 35
Bleed Pipe
Seal
- Replace after removing
Seal
- Replace after removing
Transmission Fluid Auxiliary Hydraulic Pump -V552- Motor
- Removing and Installing. Refer to Transmission Fluid Auxiliary Hydraulic Pump -V552-, REMOVING AND INSTALLING .
Cover
Bolt
- 4 Nm + 45°
- Replace after removing
- Quantity: 4
- M5 X 22
Transmission Fluid Auxiliary Hydraulic Pump -V552- Pump
- Removing and Installing. Refer to Transmission Fluid Auxiliary Hydraulic Pump -V552-, REMOVING AND INSTALLING .
Seal
- Replace after removing
Seal
- Replace after removing
Valve Body
- Removing and installing, Transmission Control Module - J217-. Refer to Transmission Control Module -J217-, REMOVING AND INSTALLING .
Seal
- Replace after removing
Seal
- Replace after removing
Lower Pressure Filter
