Overview - Coolant Pipes
WARNING: This page is about a different car, the 2022 Audi SQ5, 2021 Audi SQ5, 2020 Audi SQ5, 2019 Audi SQ5, and 2018 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- The arrows on the coolant pipes and ends of coolant hoses must align.
- Left Front Coolant Pipe
- Removing and installing. Refer to LEFT FRONT COOLANT PIPE, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- O-Ring
- Always replace after removing.
- Bolt
- 9 Nm
- Front Coolant Pipe
- Always replace after removing.
- Removing and installing. Refer to FRONT COOLANT PIPE, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- O-Ring
- Always replace after removing.
- O-Ring
- Always replace after removing.
- Bolt
- 9 Nm
- Connection
- O-Ring
- Always replace after removing.
- Bolt
- 9 Nm
- Large Right Rear Coolant Pipe
- Removing and installing. Refer to LARGE RIGHT REAR COOLANT PIPE, REMOVING AND INSTALLING .
- Clamp
- Bolt
- 9 Nm
- Clamp
- Bolt
- 9 Nm
- O-Ring
- Always replace after removing.
- Clamp
- Bolt
- 9 Nm
- Small Right Rear Coolant Pipe
- Removing and installing. Refer to SMALL RIGHT REAR COOLANT PIPE, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Rear Left Coolant Pipe
- Removing and installing. Refer to LEFT REAR COOLANT PIPE, REMOVING AND INSTALLING .
- Seal
- Always replace after removing.
- Bolt
- 9 Nm
- O-Ring
- Always replace after removing.
- O-Ring
- Always replace after removing.
- Bolt
- 9 Nm
- Connection
- Seal
- Always replace after removing.
- Bolt
- 9 Nm
Coolant Pipes on Lock Carrier - Tightening Specifications:
-- Tighten the left and right self-threading bolts -1- by hand and turn so that the bolts find the old threads. Then tighten the bolts to 4.5 Nm.

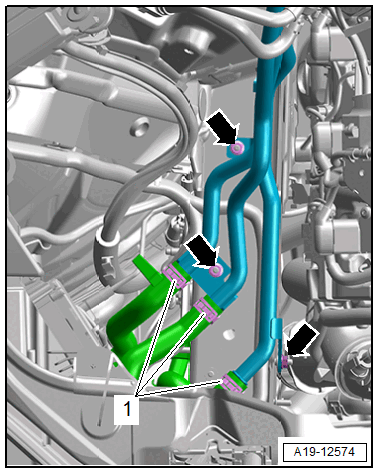

Coolant Pipes on Longitudinal Member - Tightening Specifications:
-- Tighten the nuts -arrows- to 9 Nm.
-- Tighten the bolts -1- to 9 Nm.
