Charge Air Pressure Sensor -G31-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi Q5 e and 2021 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

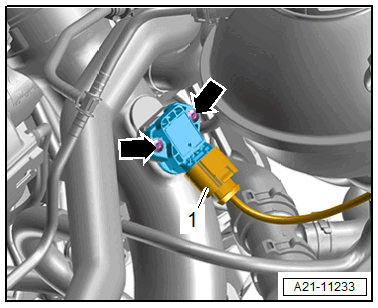

-- Disconnect the connector -1-.
Courtesy of AUDI OF AMERICA, LLC
-- Remove the bolts -arrows- and remove the Charge Air Pressure Sensor -G31- -2- from the air duct pipe. (Shown on a vehicle without a high-voltage system.)
