Engine, Supporting In Installation Position
Special tools and workshop equipment required
- Engine Support Bridge: 10-222A
Procedure
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
-- Remove the front fender cover. Refer to OVERVIEW - FENDER .
-- Remove the side plenum chamber cover. Refer to OVERVIEW - PLENUM CHAMBER COVER .

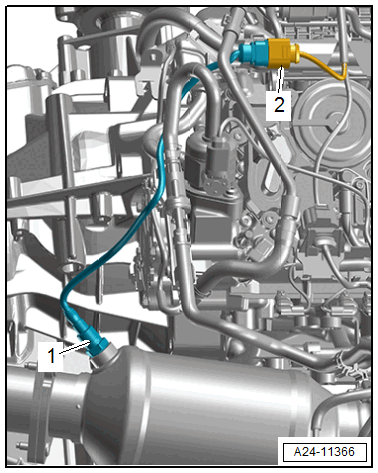

-- Remove the connector -2- for the Oxygen Sensor 1 After Catalytic Converter -GX7- -1- from the bracket and disconnect it. There are different versions.
-- Remove the left and right covers for the fender. Refer to OVERVIEW - FENDER .

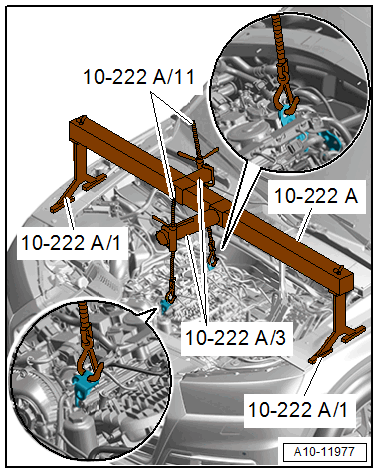

-- Position the : 10-222A as shown on the left and right fender bolting edges.
-- Engage the : 10-222A/11 on the engine lifting eye.
-- Pretension the engine with the spindle, do not lift.
Assembling
Assembly is performed in reverse order.
