Overview - High-Mounted Brake Lamp

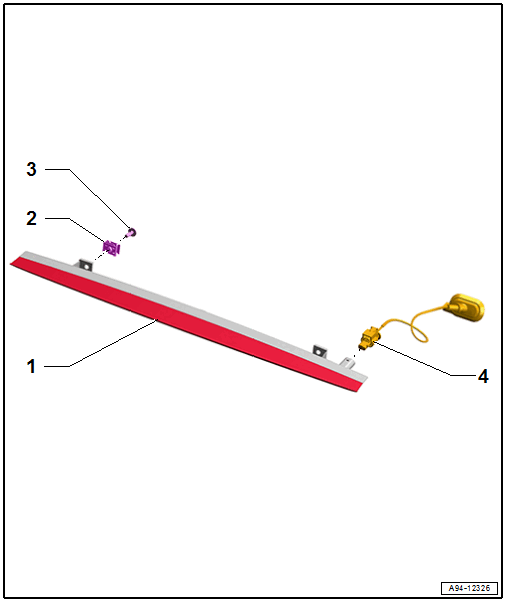

Fig 1: Exploded View Of High-Mounted Brake Lamp
GWWA94-12326Courtesy of AUDI OF AMERICA, LLC
  1. High-Mounted Brake Lamp
  2. Spring Nut
  3. Bolt
    • 2.5 Nm
  4. Connector
