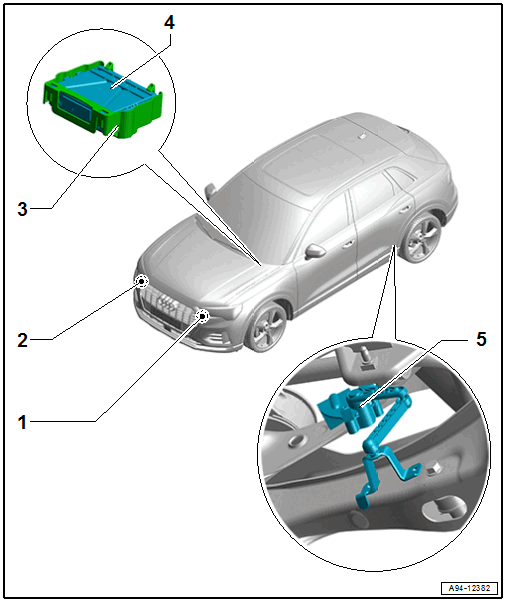

Overview - Automatic Headlamp Range Control

Courtesy of AUDI OF AMERICA, LLC

1. Left Headlamp Beam Adjustment Motor -V48-
   • Removing and installing. Refer to LEFT AND RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING .
2. Right Headlamp Beam Adjustment Motor -V49-
   • Removing and installing. Refer to LEFT AND RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING .
3. Bracket
   • For the Cornering Lamp and Headlamp Range Control Module -J745-
4. Cornering Lamp and Headlamp Range Control Module -J745-
   • Removing and installing. Refer to Cornering Lamp and Headlamp Range Control Module -J745-, REMOVING AND INSTALLING .
5. Left Rear Level Control System Sensor -G76-
   • Component location: on the rear control arm
   • Overview. Refer to OVERVIEW - REAR LEVEL CONTROL SYSTEM SENSOR .
