Overview - Cooler

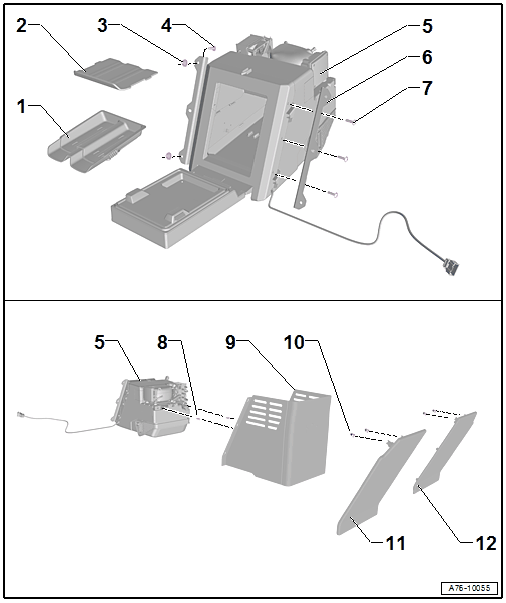

Fig 1: Exploded View Of Cooler

Courtesy of AUDI OF AMERICA, LLC

Bottle Holder
- Removing and Installing. Refer to BOTTLE HOLDER, REMOVING AND INSTALLING .
Storage Tray
- Removing and Installing. Refer to STORAGE TRAY, REMOVING AND INSTALLING .
Nut
- Quantity: 4
- Replace after removing.
- 8 Nm
Bolt
- Quantity: 4
Cooler -J698-
- Unit with compressor
- Removing and Installing. Refer to COOLER, REMOVING AND INSTALLING .
Bracket
- Quantity: 2
- For securing int he luggage compartment
- Removing and Installing. Refer to COOLER, REMOVING AND INSTALLING .
Bolt
- Quantity: 6
- Install with locking compound. Refer to the Parts Information for the locking compound.
- 1.5 Nm
Clip
- Quantity: 2
Cooler Trim Panel
- Removing and Installing. Refer to COOLER, REMOVING AND INSTALLING .
Clip
- Quantity: 2 each
Left Rear Panel Trim Panel
- Removing and Installing. Refer to COOLER, REMOVING AND INSTALLING .
Right Rear Panel Trim Panel
- Removing and Installing. Refer to COOLER, REMOVING AND INSTALLING .
