Cooler, Removing And Installing: Removing

Courtesy of AUDI OF AMERICA, LLC

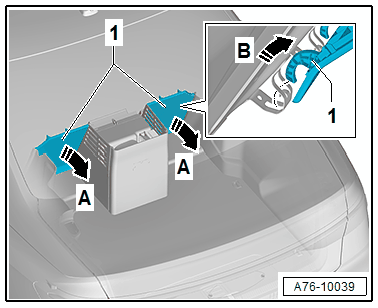

-- Loosen the rear panel trim panel -1- from the upper catches -A arrows- and pivot it downward.

-- Remove the rear panel trim panel -arrow B-.

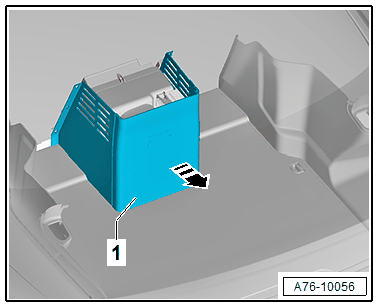

-- Loosen the cooler trim panel -1- from the catches -arrow- and remove it toward the rear.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left rear seat. Refer to REAR SEAT BACKREST, REMOVING AND INSTALLING .

-- Fold the insulation upward in the are shown.

Courtesy of AUDI OF AMERICA, LLC

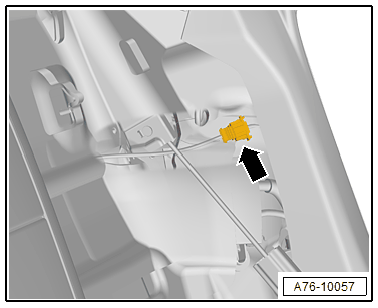

-- Release, disconnect and free up the connector -arrow-.

-- Loosen the wiring harness from the retainers and guide into the luggage compartment.

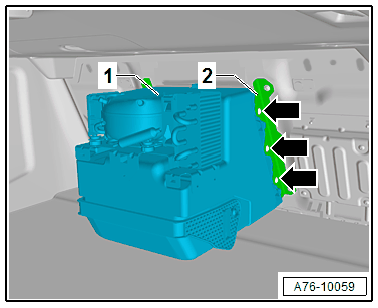

-- Remove the bolts -arrows- from the bracket -2-.

Courtesy of AUDI OF AMERICA, LLC

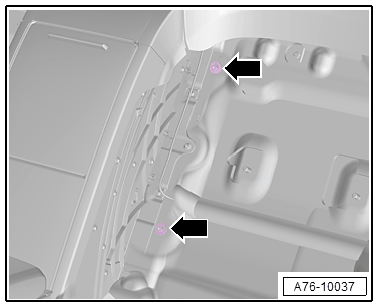

-- To do so fold away the inner insulation and counterhold the nuts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

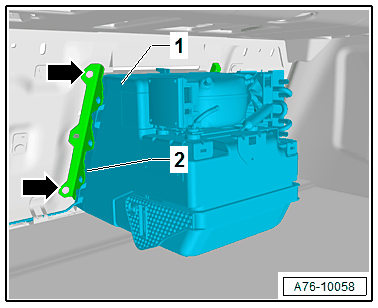

-- Remove the bolts -arrows- on the cooler -1-.

Courtesy of AUDI OF AMERICA, LLC

-- The bracket -2- remains in the rear panel.

-- Remove the cooler -1- carefully toward the rear.
