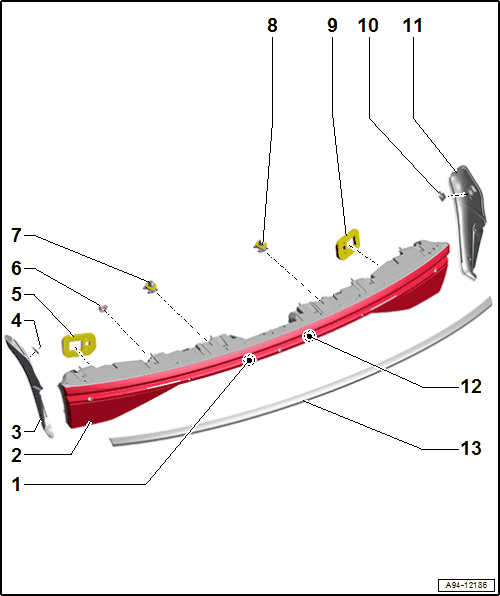

Overview - Rear Lid Tail Lamps
- Left License Plate Lamp -X4-
- Cannot be replaced separately if faulty.
- Replacing. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING .
- Tail Lamp
- In the rear lid
- Removing and installing. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING .
- Cover
- For the tail lamp
- Removing and installing. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING .
- Clip
- Seal
- Replace if damaged.
- Nut
- Quantity: 8
- Tightening specification and sequence. Refer to Fig 1.
- Mount
- Mount
- Seal
- Replace if damaged.
- Clip
- Cover
- For the tail lamp
- Removing and installing. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING .
- Right License Plate Lamp -X5-
- Cannot be replaced separately if faulty.
- Replacing. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING .
- Trim Molding
- Removing and installing. Refer to MOLDINGS, TRIMS, EXTENSIONS AND TRIM PANELS .

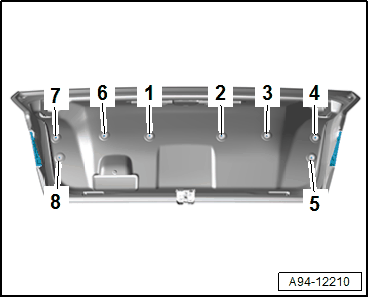

-- Gradually tighten the nuts in the sequence shown:
| Step | Bolts | Tightening Specification |
|---|---|---|
| 1. | -1 and 2- | Install by hand all the way |
| 2. | -1 to 8- | 3.5 Nm |
