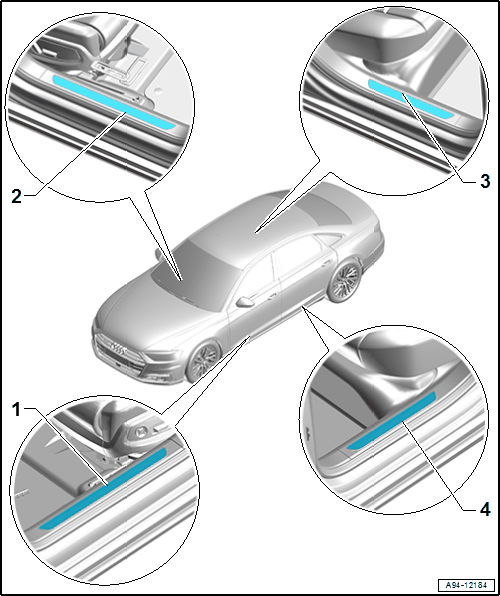

Overview - Entry Lamp

Courtesy of AUDI OF AMERICA, LLC

Driver Side Sill Panel Strip Ambient Lighting Lamp -W102-
- Integrated in the A-pillar lower trim panel
- cannot be replaced separately
- If faulty, replace the A-pillar lower trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
Front Passenger Side Sill Panel Strip Ambient Lighting Lamp -W103-
- Integrated in the A-pillar lower trim panel
- cannot be replaced separately
- If faulty, replace the A-pillar lower trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .
Passenger Side Rear Side Sill Panel Strip Ambient Lighting Lamp -W104-
- Integrated in the sill panel
- cannot be replaced separately
- Replace the sill panel, if faulty. Refer to SILL PANEL, REMOVING AND INSTALLING .
Driver Side Rear Side Sill Panel Strip Ambient Lighting Lamp -W105-
- Integrated in the sill panel
- cannot be replaced separately
- Replace the sill panel, if faulty. Refer to SILL PANEL, REMOVING AND INSTALLING .
